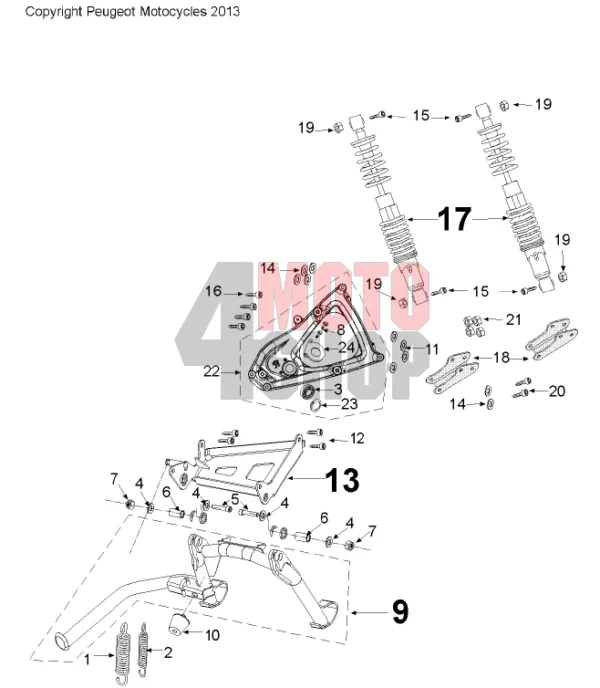

Metropolis 400 E4 amortyzator i nóżka centralna

Part ref Code Description
785643 1 EXTERIOR SPRING
785644 2 INTERIOR SPRING
780676 3 BALL BEARING
744430 4 PLAIN WASHER
769061 5 SCREW CHC M10X1,50-45
771150 6 SPACE 10-15X25
834012 7 FLANGE NUT M10X1.50
706559 8 SCREW EMB D10 H M6X1,00-20
791157 9 CENTER STAND
771041 10 RUBBER STOP D33/24-28+10
765648 11 SPRING WASHER 10X21X1
740757 12 SCREW CHC M8X1,25-30 MICRO
781258 13 HOLDER STAND
725083 14 CONICAL WASHER 8X16X1,4
772695 15 HEAD CAP SCREW M10X1.50-55
781885 16 SCREW CHC M8X1,25-50 MICRO
786296 17 REAR SHOCK ABSORBER
782679 18 HOLDER SHOCK ABSORBER
834012 19 FLANGE NUT M10X1.50
781885 20 SCREW CHC M8X1,25-50 MICRO
750761 21 LOCK NUT M8X1,25
790835 22 HANGER ARM ASSEMBLY
758765 23 CIRCLIP 55
781456 24 PROTECTING SHEET
