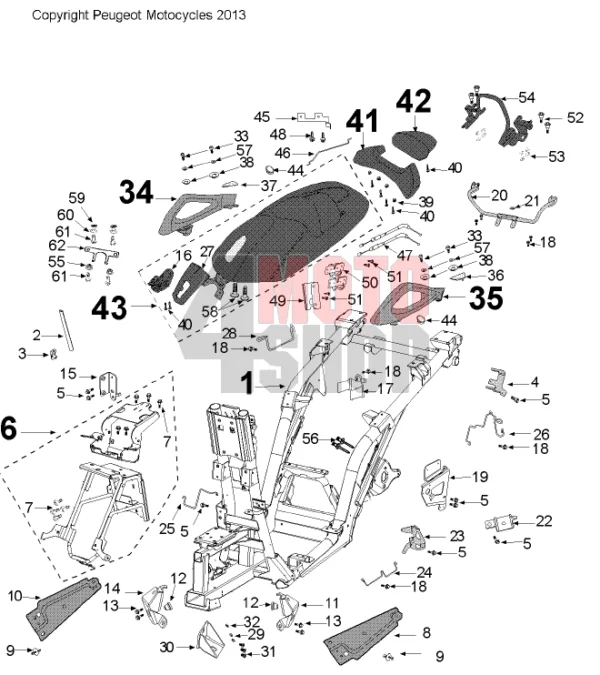

Part ref Code Description
803737 1 FRAME + shock absorbers
787881 2 PROTECTION L55
742355 3 SELF TAPPING NUT 6X1,00
782591 4 HOLDER BRACKET
736786 5 HEXAGON SCREW M6X1,00-15
803528 6 BRACKET
705096 7 SCREW EMB H M8X1,25-14
782979 8 LH HOLDER
765757 9 PLASTIC RIVET D=5,8
782980 10 RH HOLDER
785020 11 HOLDER BRACKET
770709 12 RUBBER D35/25-15+10
725507 13 SCREW EMB HE M5X0,80-10
785021 14 HOLDER BRACKET
783712 15 HOLDER BRACKET
783487 16 BAG CLAMP
782581 17 HOLDER
704937 18 FLANGE SCREW M6X1,00-12
785567 19 PLATE HOLD
781994 20 REAR SUPPORT ARM
853096 21 PLAIN WASHER 6X18X1,2
779516 22 BRACKET
784425 23 HOLDER BRACKET SMARTKEY
783688 24 HOLDER BRACKET
783705 25 LH HOLDER BRACKET
783706 26 RG HOLDER BRACKET
783848 27 STRIP
784246 28 HOLDER BRACKET
775206 29 PLAIN WASHER 8X17X1,6
782428 30 BRACKET
783184 31 ROUND HEAD SCREW CBXM8X1,25-15
853090 32 PLAIN WASHER 8X22X1,5
792288 33 SCREW CHC M8X1,25-30 MICRO
782172 34 RH. HANDLE
782171 35 LH. HANDLE
783669 36 LH EMBELLISHER
783670 37 RH EMBELLISHER
782245 38 WASHER 11X21,2X2,3
837011 39 NUT ELS EMBASE M8X1,25
767140 40 SCREW RLX 4-20
782167 41 BACK REST
783204 42 BACK REST
786297 43 SEAT
785503 44 PLUG
782461 45 PLATE
782467 46 LOCKING SYSTEM
782664 47 LOCKING SYSTEM
785457 48 SCREW EP RLX M5X0,80-16 D8X7
783704 49 PLATE
734197 50 LOCK-PLATE
749537 51 SCREW EP EMB H M6X1,00-16 D8X4
710466 52 SCREW H M8X1,25-25
744381 53 PLAIN WASHER 9X24X4
782695 54 BRACKET
706681 55 FLANGE NUT M8X1,25
730606 56 RIVET
725083 57 CONICAL WASHER 8X16X1,4
803476 58 HEAD CAP SCREW M8
789198 59 NUT H M8X1,25
853100 60 PLAIN WASHER 8X16X1,5
710466 61 SCREW H M8X1,25-25
787466 62 BRACKET
Schematy, Metropolis
Metropolis 400 E4 siedzisko i rama przed VIN…
Schemat Metropolis 400 E4 siedzisko i rama przed VIN…
